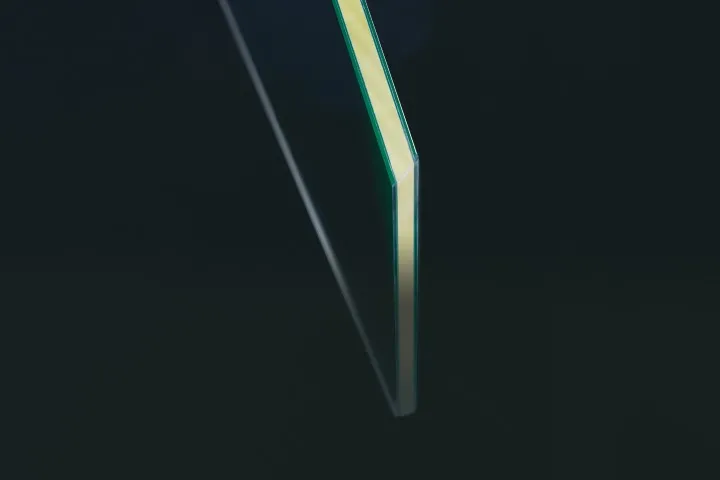

Radiation Shielding Lead Glass: LX57B
It offers excellent radiation shielding performance and has been highly praised across a wide range of fields, including medical, industrial, laboratory, and nuclear industries. By using the large-sized LX-57B for monitoring and operation windows, such as in X-ray TV rooms, X-ray CT rooms, and angiography rooms, the field of view is expanded, significantly improving operability.
Applications
-
Medical facilities (e.g., X-ray CT rooms, angiography rooms)
-
Research facilities (e.g., synchrotron radiation facilities)
-
Nuclear facilities
-
Industrial facilities (e.g., non-destructive testing rooms with X-ray CT)
Features
-
Outstanding radiation shielding performance
Thanks to its high lead content, this glass delivers excellent radiation shielding performance, even at thinner thicknesses compared to other transparent radiation shielding materials. -
High transparency
Made from high-quality raw materials, this glass is polished on both sides, offering visible light transmittance almost identical to standard window glass. It is ideal for monitoring and operating windows in radiation equipment. -
Specific properties of glass
In the event of a fire, the glass will not burn. It is also machinable, allowing for customization with round shapes or drilled holes, making it suitable for round windows and glove boxes.
Specifications
Radiation Shielding Performance
The thickness of the LX-57B corresponds to the lead equivalent thickness, ensuring it provides the same X-ray attenuation capacity as a lead plate of the same thickness.
Thickness and lead equivalent
| Product Thickness (mm) | Lead equivalent (mmPb) | Remarks |
|---|---|---|
| 6.0±0.5 | 1.1 | Guaranteed lead equivalent at X-ray tube voltage 60-150kV, gamma ray 0.511MeV |
| 7.0±0.5 | 1.5 | |
| 9.0±0.5 | 2.0 | |
| 11.0±0.5 | 2.5 | |
| 14.0±0.5 | 3.0 | Guaranteed lead equivalent at X-ray tube voltage 60-200kV, gamma ray 0.511MeV |
Products with shielding performance exceeding 3.0 mm Pb lead equivalent for X-rays, as well as those designed for non-X-ray radiation sources, can also be manufactured. Please contact us for more details.
Transmittance (Reference Value)
The transmittance of the LX-57B is nearly identical to that of standard window glass of the same thickness.
Properties
| Properties/Glass code | LX-57B | ||
|---|---|---|---|
| Specific gravity | ≧4.36 | ||
| Coefficient of thermal expansion | 30～380℃ | ×10-7/K | 80 |
| Softening point | ℃ | 585 | |
| Young's modulus | GPa | 63 | |
| Poisson's ratio | 0.24 | ||
| Knoop hardness | Hv | 370 | |
| Transmittance | λ=550nm | % | 85 |
|
Refractive index (nD) |
Na-D | 1.71 | |
The values are for reference only and are not guaranteed values.
Dimensions, etc.
-
Maximum dimension: 1200 x 2600 mm (however, the maximum dimension is 400 x 600 mm for 6 mm thickness)
-
Dimension tolerance: vertical, horizontal/+0, -2mm thickness/± 0.5mm
-
Perpendicularity tolerance: 1.0mm or less for side length 200mm
-
Weight (per m2): 7mm/1.5mmPb about 31kg 9mm/2.0mmPb about 40kg
