IR Transmitting Glass
Chalcogenide Glass FI-02
Our proprietary chalcogenide glass composition is free from hazardous substances like arsenic and selenium. It offers excellent infrared transmission properties and is suitable for everything from prototyping to mass production, thanks to our integrated in-house manufacturing process.
Features
-
High infrared transmittance in sensitive wavelength ranges
-
Free from hazardous substances (arsenic, selenium, etc.)
-
High refractive index/low dispersion (for aberration suppression)
-
Suitable for small batch to mass production
-
Large aperture sizes available (up to Φ300 mm)

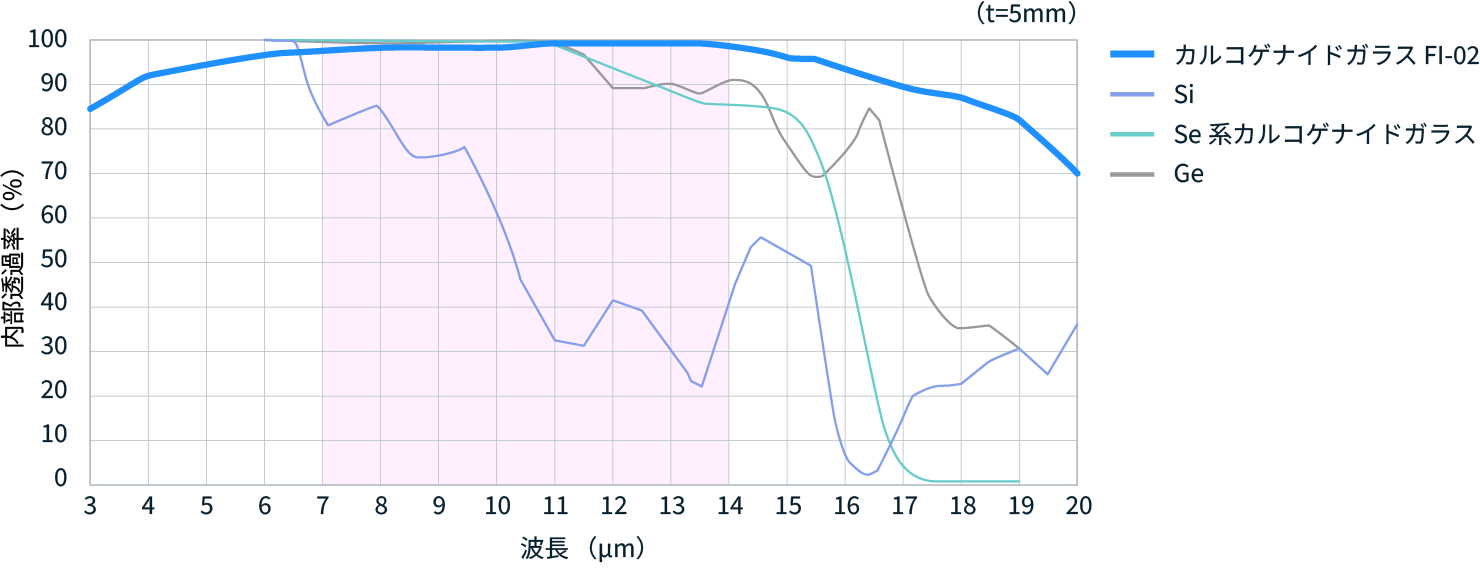

Internal Transmittance
Image Comparison with an Infrared Camera
Existing lens unit
Our lens unit
Applications
-
Thermal imaging
-
Immersion grating
-
Lenses for quantum cascade lasers
-
ATR prisms, etc.
Form of Supply
-
Lens
-
Lens unit
-
Blank materials (Ball PF), etc.
We can also process and customize various shapes based on optical design upon request. Additionally, we offer a range of other glass materials, so please feel free to contact us.
