Heat Reflection Coating

Visible light transmission and infrared reflection for safe, comfortable environments

Applied to wood stove windows and fire resistant glass, these coatings provide effective heat insulation and effectively reflect infrared radiation in the range of 1.5 to 5.0 micrometers. Choose from a variety of reflective materials based on your specific needs, such as ITO coatings for superior heat reflection or FTO coatings for excellent heat resistance.

Applications

  • Wood stove cover glass
  • Fire resistant glass

Features

  • High visible light transmittance
  • High infrared reflectance (ITO coating)
  • High heat resistance (FTO coating)

Specifications

Transmittance

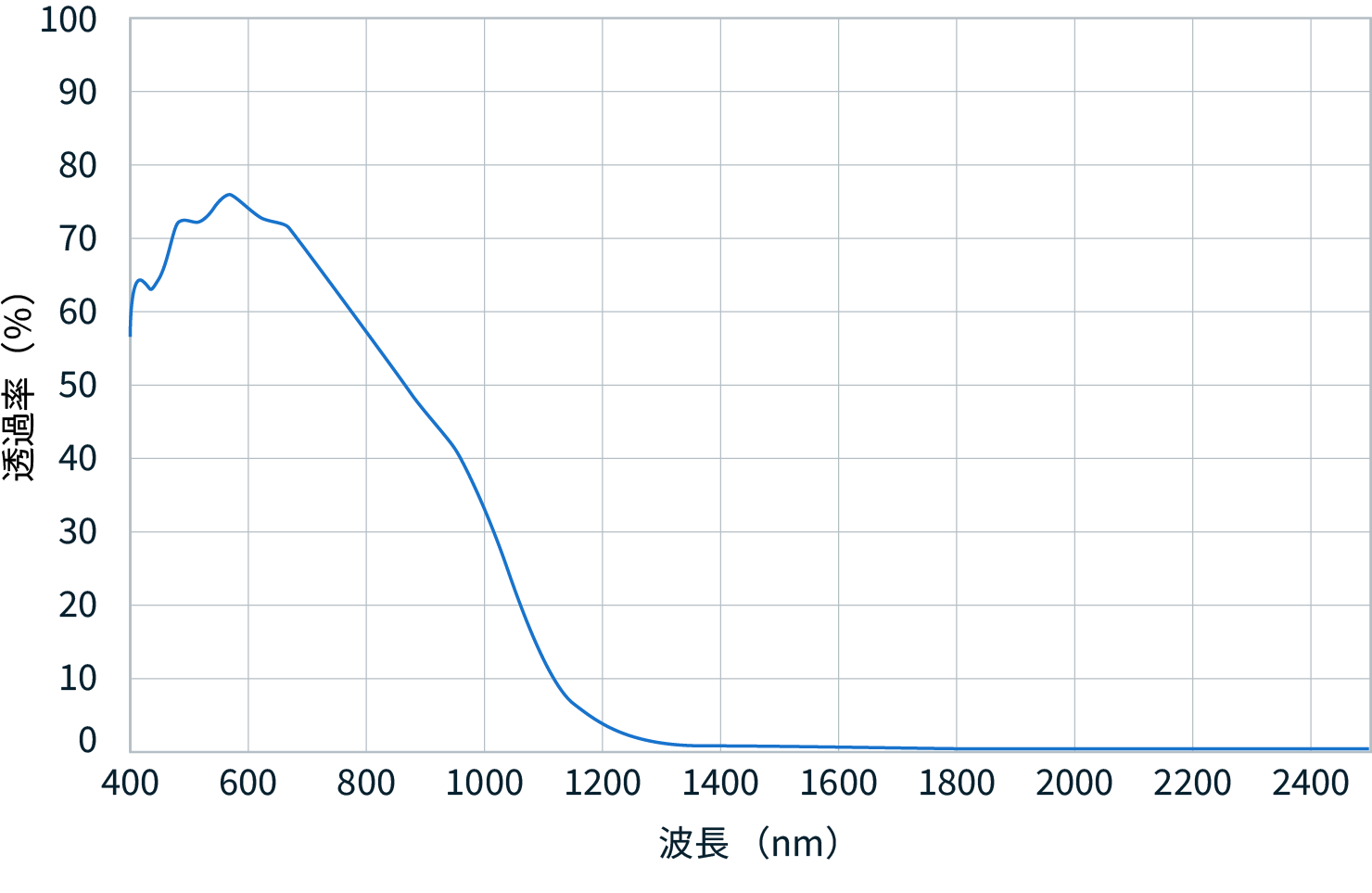

Transmittance curve (ITO type)

figure of 400 to 2,400nm transmittance. A transmittance of 50% or more is maintained in the visible range, while transmittance above 1400 nm is almost 0%
