UV Shielding Ultra-thin Glass: BDX-2
UV-shielding glass designed to extend the lifespan of devices
This ultra-thin glass offers exceptional UV shielding properties, protecting devices from air, moisture, and ultraviolet rays, thereby extending their lifespan. Its thin and lightweight design also helps reduce the overall weight of devices.
Applications
-
Perovskite solar cells
-
Satellites (solar cells, optics covers, etc.)
Features
-
High UV Shielding Properties
Effectively blocks UV-C to UV-B rays and can be combined with a UV Cut Filter. -
Flexibility
Bendable. -
High Gas Barrier Properties
Protects devices from water and oxygen degradation. -
Thinness
Available in ultra-thin options, with a minimum thickness of 30 µm. -
Lightweight
Weighs approximately 246 g per square meter (for a 100 µm-thick plate).
Specifications
Properties
| Properties/Glass cord | BDX-2 | ||
|---|---|---|---|
| Density | ×103kg/m3 | 2.46 | |
| Coefficient of thermal expansion | 30～380゜C | ×10-7/K | 79 |
| Strain point | ℃ | 550 | |
| Annealing point | ℃ | 595 | |
| Softening point | ℃ | 805 | |
| Transmittance (thickness: 100 μm) | λ=550nm | ％ | 92 |
| λ=400nm | 91 | ||
| λ=350nm | 90 | ||
| λ=300nm | 20 | ||
| Refractive index | nd(587.6nm) | 1.52 | |

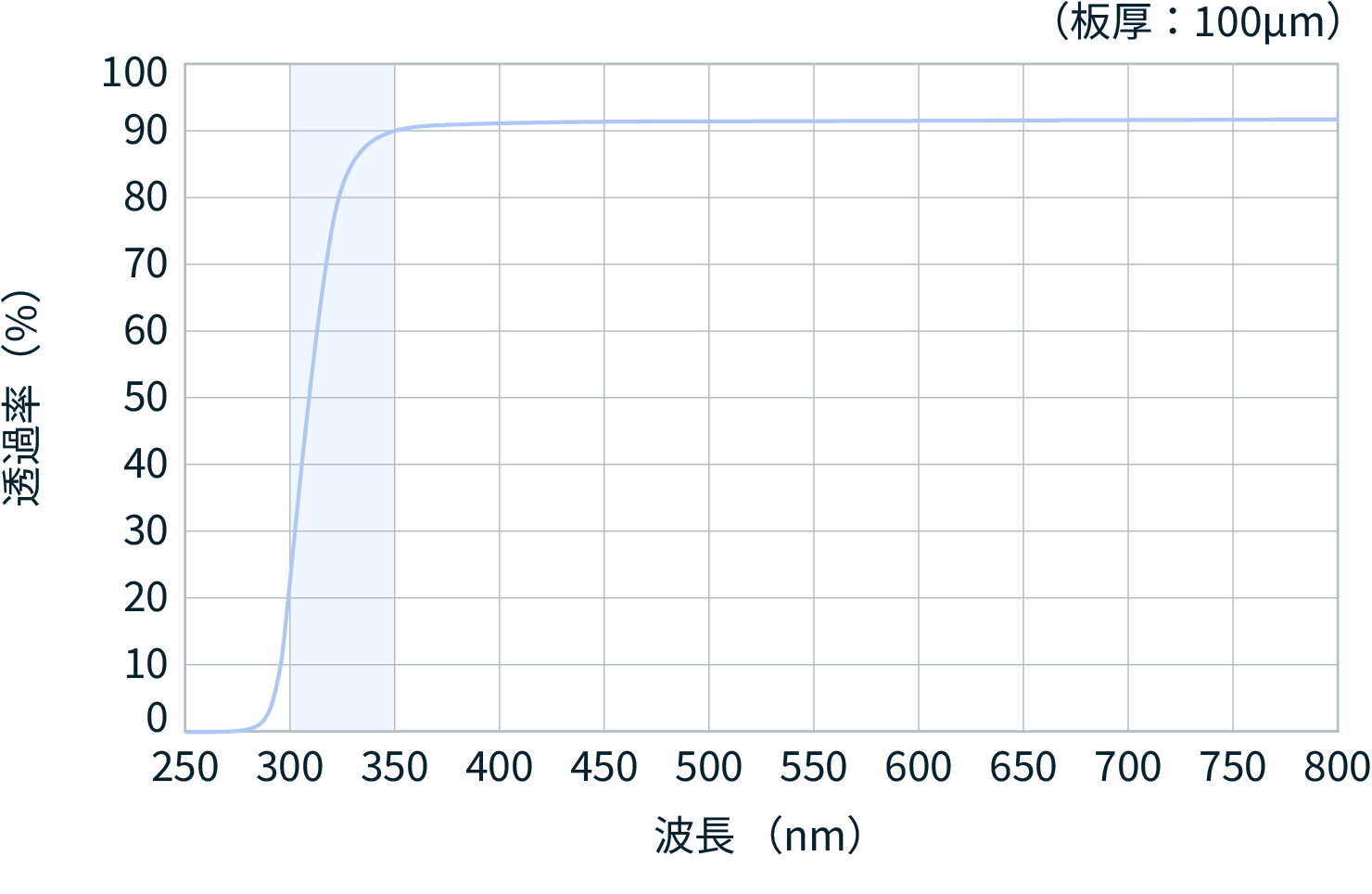

Transmittance Curve
