Ball Lens with AR Coating
High-precision ball lens with anti-reflection coating
An anti-reflection coating is applied to the entire surface of a high-precision ball lens made from precision-machined optical glass. This ensures that all surfaces are evenly coated, making alignment easier.
Properties
-
Miniaturization: Min. diameter of 0.30 mm is possible.
-
High transmittance (>99.5%) in the wavelength band of optical communications (1,250 to 1,650 nm)
-
Diversification: Various optical glass materials can be used.
-
Simplified alignment due to lack of orientation

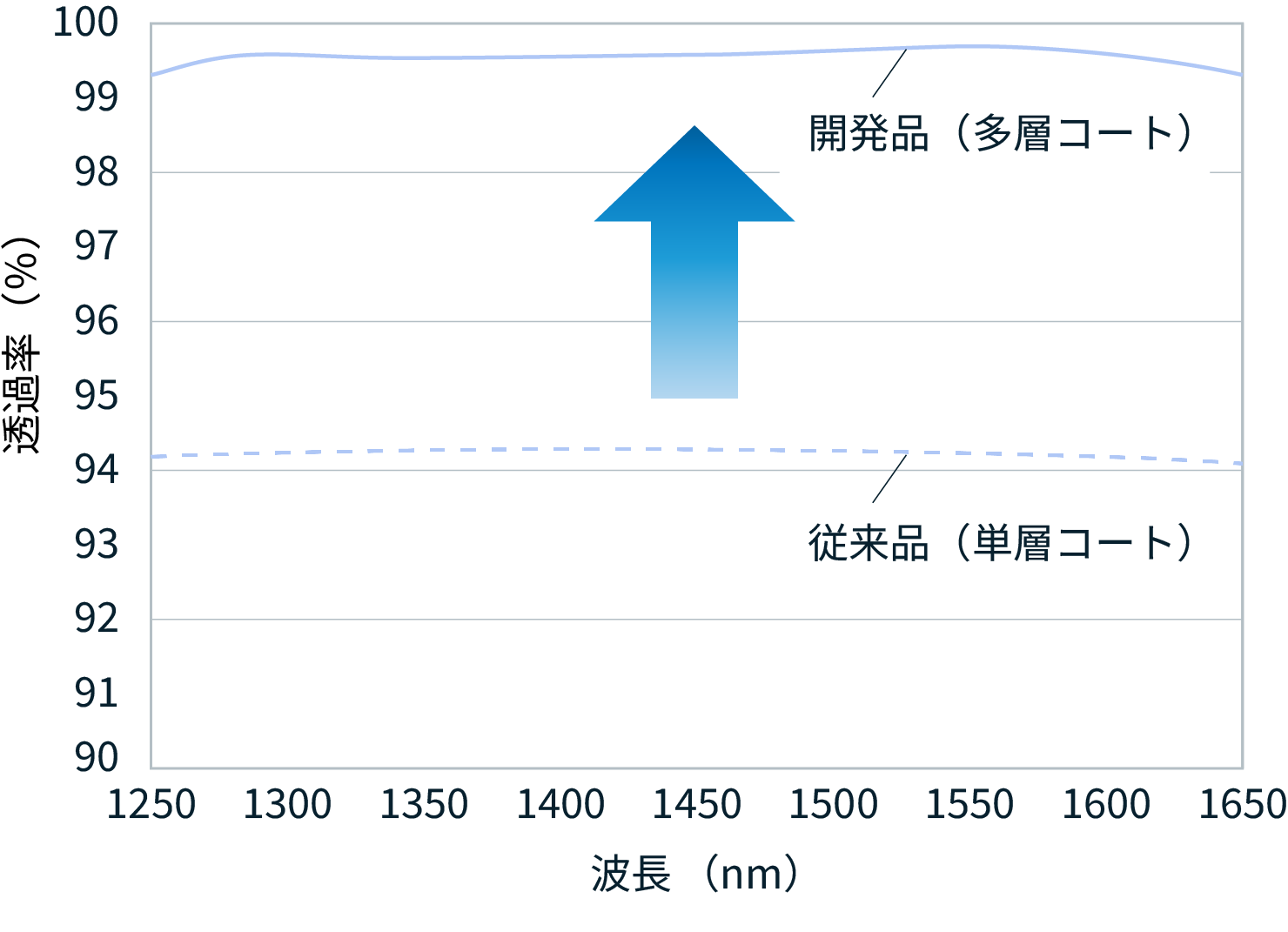

Transmittance Curve

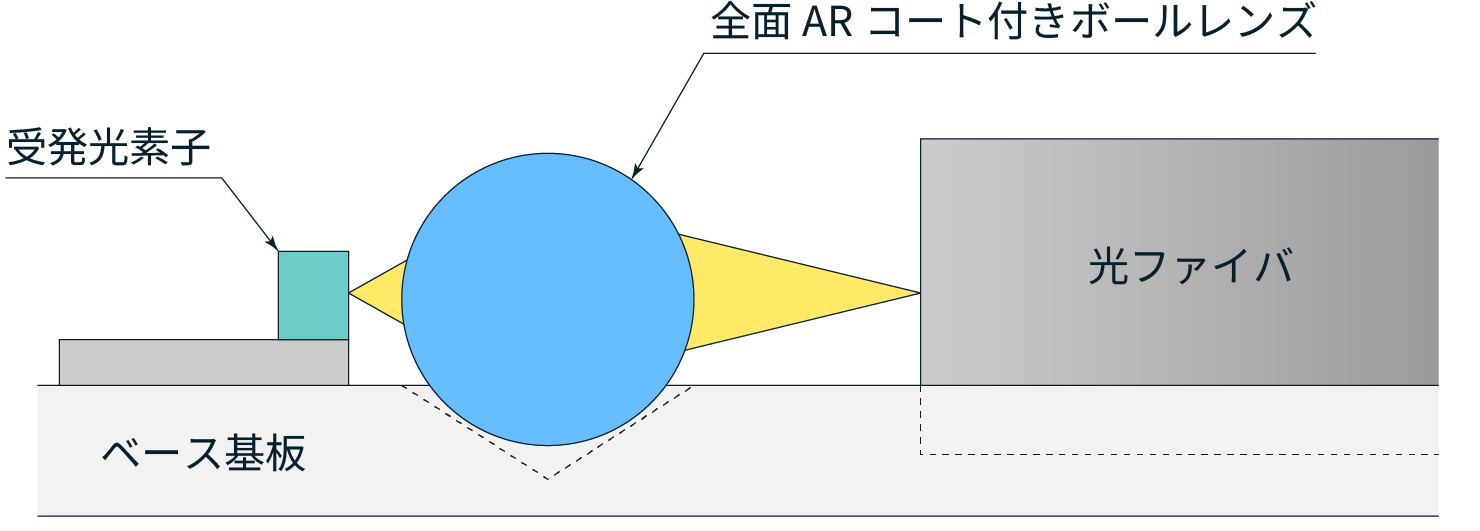

Application Example
Application image
